  • EMUGE BU51C400.5035 Tap No.2-64.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE GLT-1

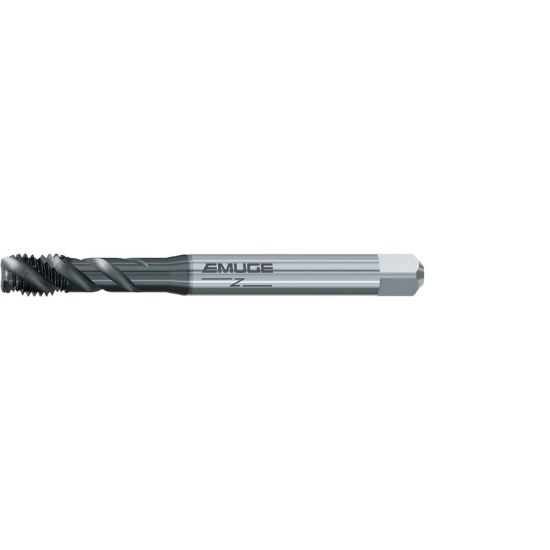

Picture of EMUGE BU51C400.5035 Tap No.2-64.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE GLT-1

EMUGE BU51C400.5035 Tap No.2-64.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE GLT-1

ISO: BU51C400.5035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU51C400.5035
Delivery date: 3-5 days
$73.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating GLT-1
Dimensional Specifications
Thread Size No.2
Flute Direction R - Right
Drill Range 0.0689 1.75MM - 0.0736 1.87MM
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Thread Type NF/UNF/UNEF
Machine Side Connection Type Tap Collet
Overall Len 1.7720 45.01MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Dimension Standard DINSI
Flutes/Inserts 2
Thread Pitch 64.00TPI
Shank/Pilot Dia 0.1410 3.58MM
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
