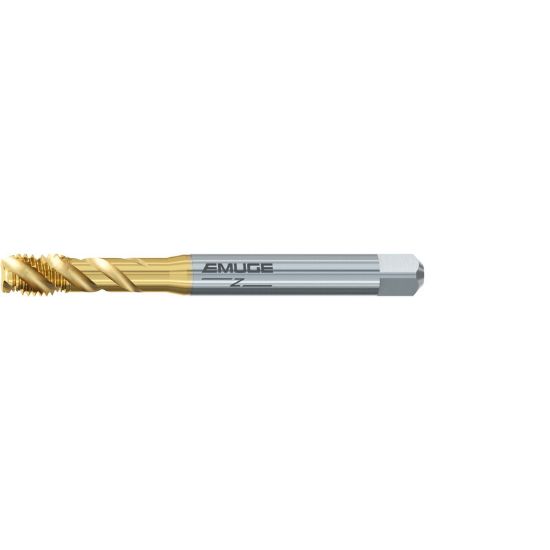

EMUGE BU513700.5038 Tap No.5-44.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE TiN

ISO: BU513700.5038

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU513700.5038
Delivery date: 3-5 days
$57.04

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size No.5
Flute Direction R - Right
Dimension Standard DINSI
Thread Pitch 44.00TPI
Tool Material Steel
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Thread Limit 2B
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1012 2.57MM - 0.1071 2.72MM
Flutes/Inserts 3
Thread Type NF/UNF/UNEF
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Overall Len 2.2050 56.01MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Medical Yes
