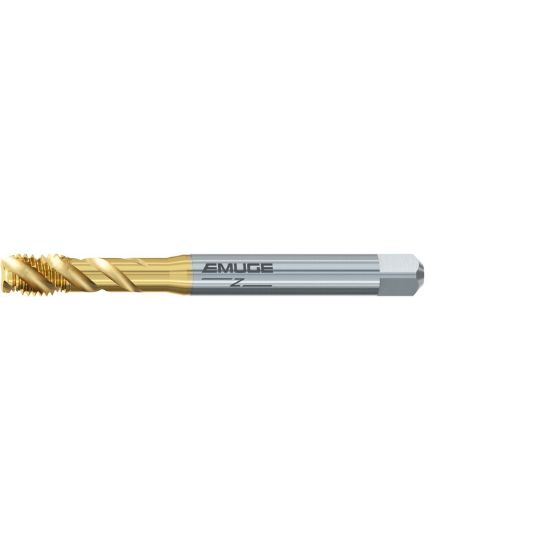

EMUGE BU513700.5007 Tap Bottoming No.10-24.00TPI 2B NC/UNC DINSI HSSE TiN

ISO: BU513700.5007

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU513700.5007
Delivery date: 3-5 days
$49.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Pitch 24.00TPI
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Square 0.1520
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Tap Type Bottoming
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Flutes/Inserts 3
Overall Len 2.7560 70.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
