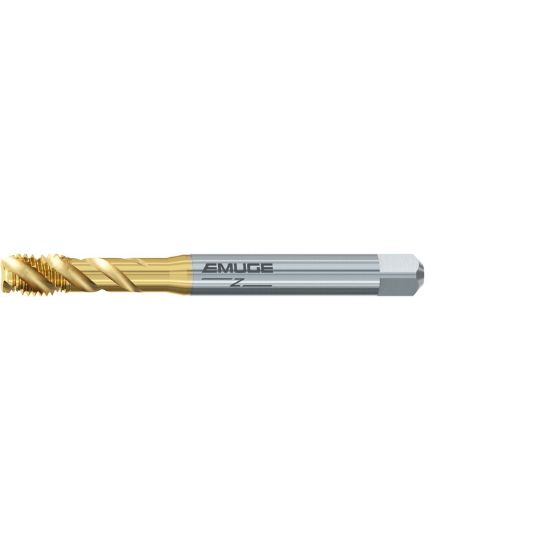

EMUGE BU513700.5003 Tap Bottoming No.4-40.00TPI 2B NC/UNC DINSI HSSE TiN

ISO: BU513700.5003

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU513700.5003
Delivery date: 3-5 days
$53.49

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Pitch 40.00TPI
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Overall Len 2.2050 56.01MM
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Tool Material Steel
Tap Square 0.1100
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 2
Length Type Standard
Tap Type Bottoming
Drill Range 0.0860 2.18MM - 0.0925 2.35MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
