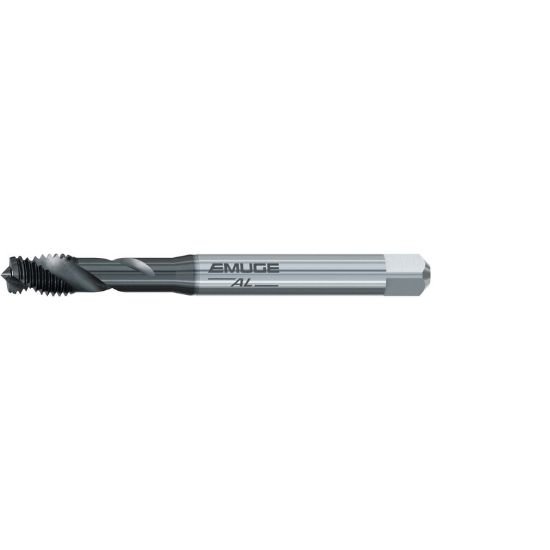

Picture of Emuge BU50S810.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE DLC

Emuge BU50S810.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE DLC

Part Number: EMUBU50S810.5011 ISO: BU50S810.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155931
Vendor: Sussex Tool and Supply
$68.50
EMUGE BU50S810.5011 3/8"x16.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE DLC GH11 +0.005" NC/UNC Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Graphite, Aluminum, Brass, Plastic
Coating DLC
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit GH11 +0.005"
Tap Style Over Sized Mod Bottom
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
