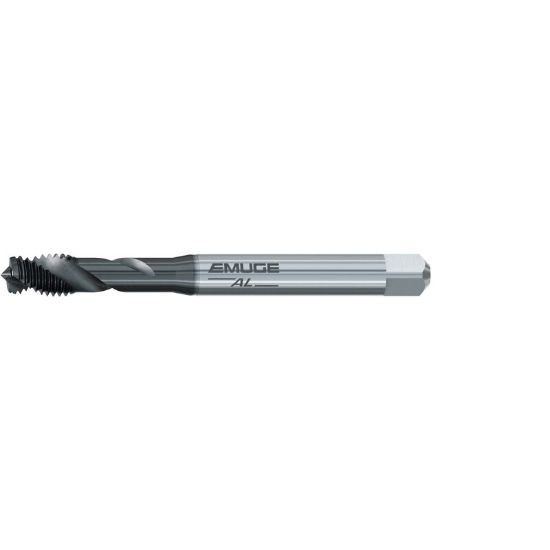

Picture of Emuge BU50S800.5035 Tap No.2-64.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE DLC

Emuge BU50S800.5035 Tap No.2-64.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE DLC

Part Number: EMUBU50S800.5035 ISO: BU50S800.5035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155912
Vendor: Sussex Tool and Supply
$68.57
EMUGE BU50S800.5035 No.2x64.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE DLC 2B NF/UNF/UNEF Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Graphite, Aluminum, Brass, Plastic
Coating DLC
Overall Length 1.7720 45.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 64.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.2
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.0689 1.75MM - 0.0736 1.87MM
Tap Square 0.1100
Tap Chamfer 2.0P-3.0P
