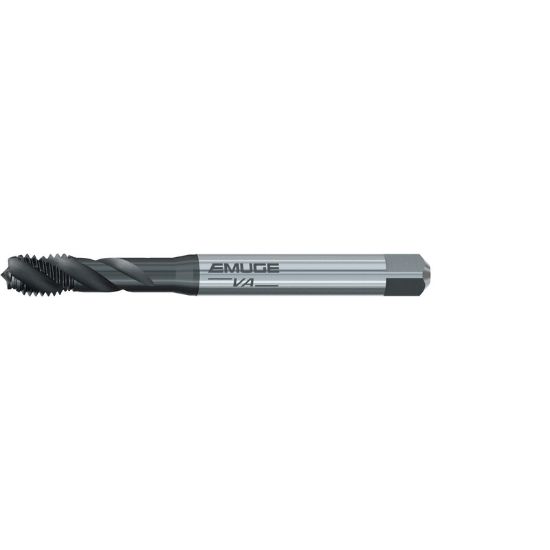

EMUGE BU503210.5034 Tap No.1-72.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSS HSSE Oxide + TiN

ISO: BU503210.5034

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU503210.5034
Delivery date: 3-5 days
$60.48

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Coating Oxide + TiN
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type NF/UNF/UNEF
Thread Limit 3B
Flute Direction R - Right
Drill Range 0.0559 1.42MM - 0.0606 1.54MM
Tap Square 0.1100
Length Type Standard
Thread Pitch 72.00TPI
Dimension Standard DINSI
Overall Len 1.7720 45.01MM
Flutes/Inserts 2
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Thread Size No.1
Cut Rating <42HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1410 3.58MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
