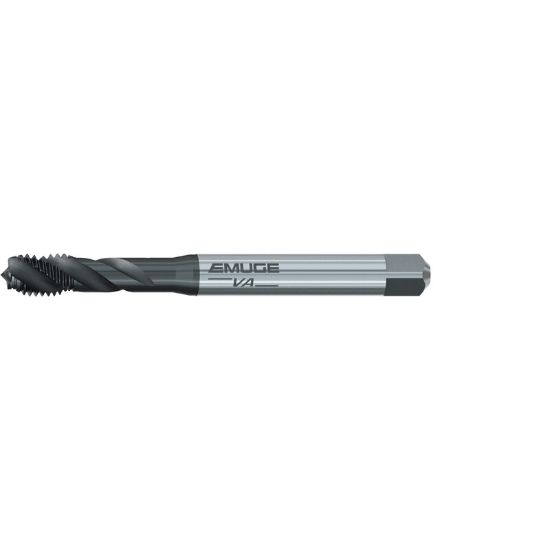

EMUGE BU503210.5004 Tap Mod Bottom No.5-40.00TPI 3B NC/UNC DINSI HSSE Oxide + TiN

ISO: BU503210.5004

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU503210.5004
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Made In USA No
Coating Oxide + TiN
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 3
Tool Material Steel
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Thread Pitch 40.00TPI
Overall Len 2.2050 56.01MM
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Thread Size No.5
Thread Type NC/UNC
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 3B
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
