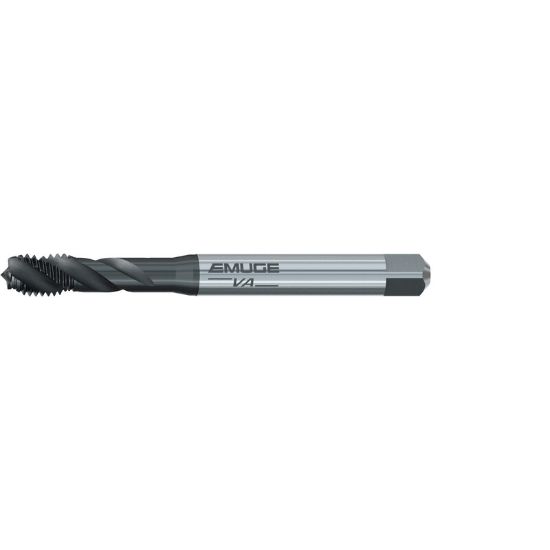

EMUGE BU503200.5042 Tap Mod Bottom No.12-28.00TPI 2B NF/UNF/UNEF DINSI HSSE Oxide + TiN

ISO: BU503200.5042

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU503200.5042
Delivery date: 3-5 days
$40.37

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating Oxide + TiN
Dimensional Specifications
Thread Limit 2B
Drill Range 0.1787 4.54MM - 0.1882 4.78MM
Thread Type NF/UNF/UNEF
Thread Pitch 28.00TPI
Flutes/Inserts 3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size No.12
Dimension Standard DINSI
Shank/Pilot Dia 0.2200 5.59MM
Overall Len 3.1490 79.98MM
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Tap Square 0.1650
Flute Direction R - Right
Length Type Standard
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
