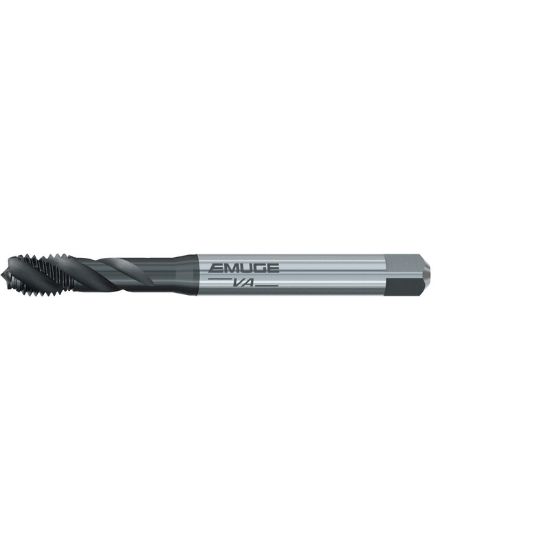

EMUGE BU503200.5038 Tap Mod Bottom No.5-44.00TPI 2B NF/UNF/UNEF DINSI HSSE Oxide + TiN

ISO: BU503200.5038

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU503200.5038
Delivery date: 3-5 days
$46.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Coating Oxide + TiN
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Massachusetts
Dimensional Specifications
Cut Rating <42HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1410 3.58MM
Thread Limit 2B
Overall Len 2.2050 56.01MM
Drill Range 0.1012 2.57MM - 0.1071 2.72MM
Thread Type NF/UNF/UNEF
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Thread Size No.5
Thread Pitch 44.00TPI
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
