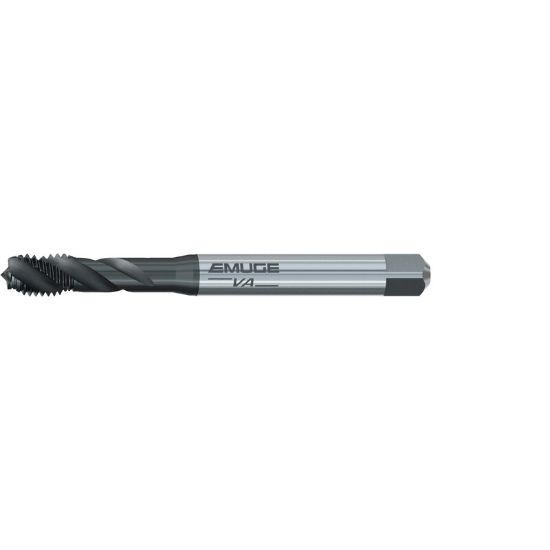

EMUGE BU503200.5009 Tap 1/4-20.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

ISO: BU503200.5009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU503200.5009
Delivery date: 3-5 days
$41.26

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating Oxide + TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Mod Bottom
Thread Size 1/4"
Thread Limit 2B
Tool Material Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Length Type Standard
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
