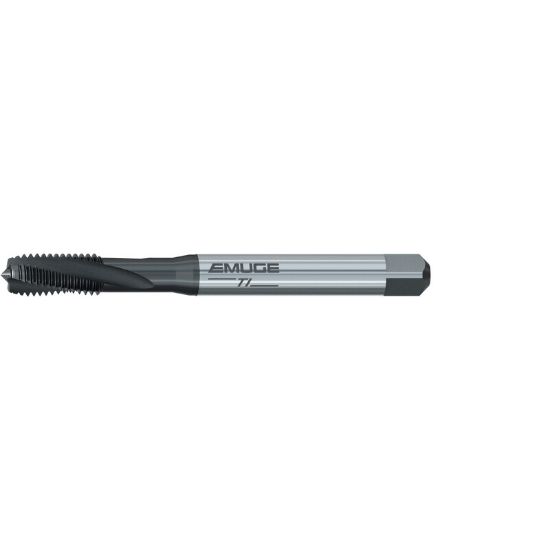

EMUGE BU456011.5639 Tap 1/4-28.00TPI Mod Bottom STI-I DINSI 2.0P-3.0P HSS HSSE Nitride + Steam Oxide

ISO: BU456011.5639

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU456011.5639
Delivery date: 3-5 days
$67.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Tapping, STI Thread Insert Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating Nitride + Steam Oxide
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimension Standard DINSI
Thread Limit 3B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.2598 6.60MM
Thread Pitch 28.00TPI
Flutes/Inserts 3
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Length Type Standard
Tap Style STI
Tool Material Steel
Thread Size 1/4"
Tap Square 0.2380
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
