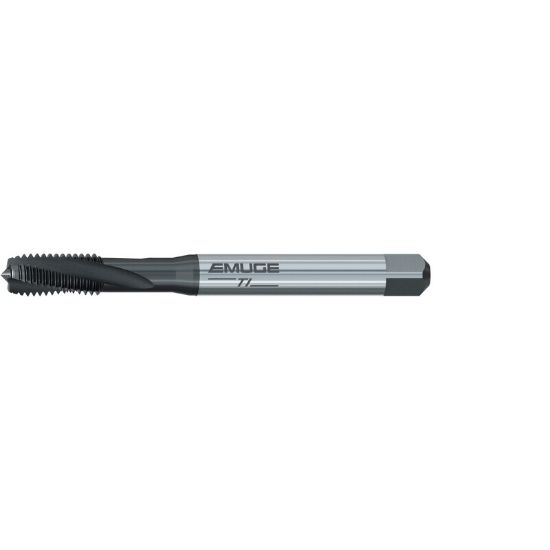

EMUGE BU456011.5612 Tap No.5-40.00TPI Mod Bottom STI-I DINSI 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide

ISO: BU456011.5612

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU456011.5612
Delivery date: 3-5 days
$66.45

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, STI Thread Insert Tapping, Tapping
Made In USA No
Coating Nitride + Steam Oxide
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 40.00TPI
Thread Limit 3B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Size No.5
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Drill Range 0.1339 3.40MM
Tap Square 0.1310
Length Type Standard
Tool Material Steel
Overall Len 2.4850 63.12MM
Tap Style STI
Flutes/Inserts 3
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
