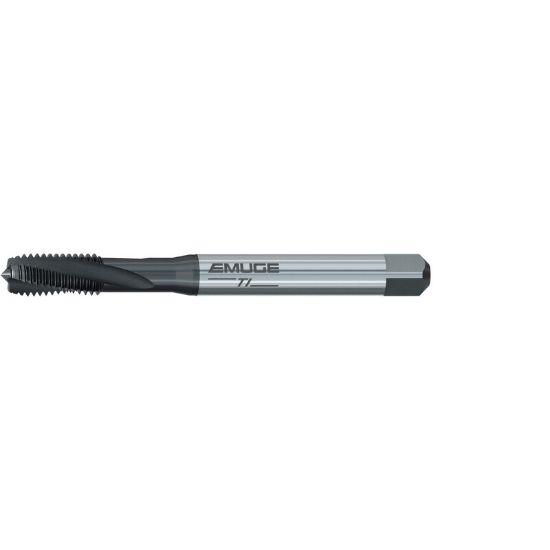

EMUGE BU456011.5039 Tap Mod Bottom No.6-40.00TPI 3B NF/UNF/UNEF DINSI HSSE Nitride + Steam Oxide

ISO: BU456011.5039

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU456011.5039
Delivery date: 3-5 days
$47.37

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating Nitride + Steam Oxide
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Drill Range 0.1118 2.84MM - 0.1181 3.00MM
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size No.6
Flutes/Inserts 3
Thread Type NF/UNF/UNEF
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 40.00TPI
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Overall Len 2.2050 56.01MM
Tool Material Steel
Tap Square 0.1100
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
