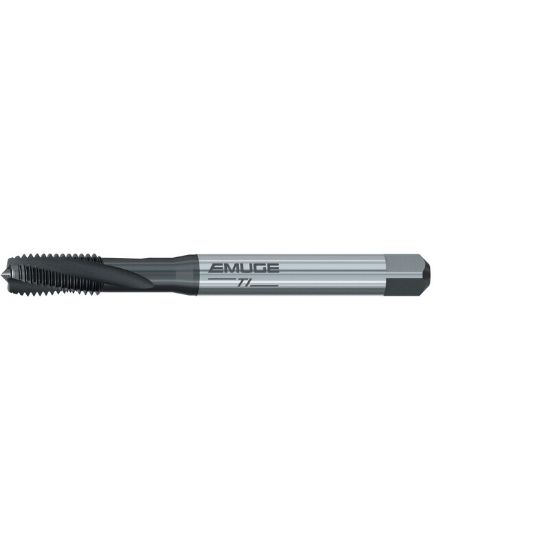

EMUGE BU456011.5008 Tap Mod Bottom No.12-24.00TPI 3B NC/UNC DINSI HSSE Nitride + Steam Oxide

ISO: BU456011.5008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU456011.5008
Delivery date: 3-5 days
$46.22

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Coating Nitride + Steam Oxide
Made In USA No
Application Mod Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tool Material Steel
Tap Square 0.1650
Flute Direction R - Right
Length Type Standard
Cut Rating High Temp, Inconel, Titanium
Machine Side Connection Type Tap Collet
Thread Limit 3B
Thread Pitch 24.00TPI
Flutes/Inserts 3
Thread Size No.12
Thread Type NC/UNC
Dimension Standard DINSI
Shank/Pilot Dia 0.2200 5.59MM
Overall Len 3.1490 79.98MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
