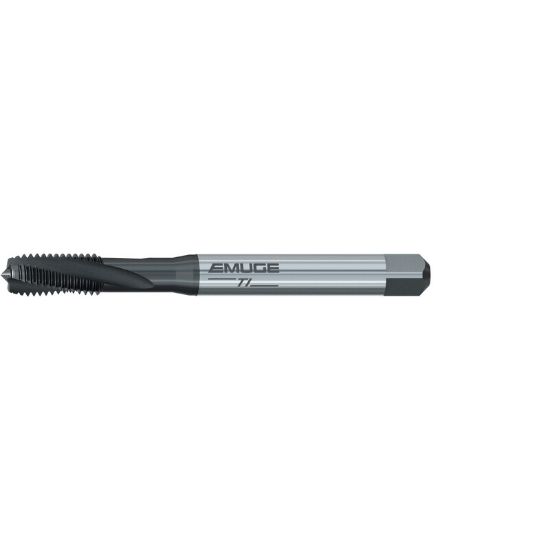

EMUGE BU456011.5001 Tap Mod Bottom No.2-56.00TPI 3B NC/UNC DINSI HSSE Nitride + Steam Oxide

ISO: BU456011.5001

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU456011.5001
Delivery date: 3-5 days
$64.82

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Dimensional Specifications
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type NC/UNC
Dimension Standard DINSI
Overall Len 1.7720 45.01MM
Flutes/Inserts 2
Tap Chamfer 2.0P-3.0P
Thread Size No.2
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Tool Material Steel
Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Shank/Pilot Dia 0.1410 3.58MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
