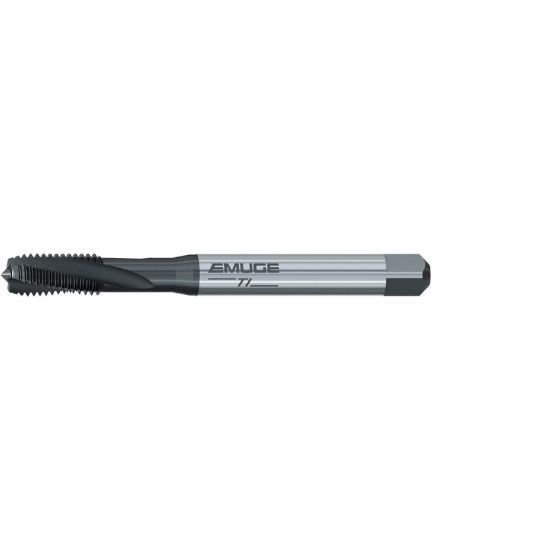

Emuge BU456011.5614 Tap No.8-32.00TPI Mod Bottom STI-I DINSI 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide
Emuge BU456011.5614 Tap No.8-32.00TPI Mod Bottom STI-I DINSI 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide
Part Number: EMUBU456011.5614 ISO: BU456011.5614
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1159374
Vendor:
Sussex Tool and Supply
$58.31
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE BU456011.5614 No.8x32.00TPI STI Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 3B STI-I Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating
Nitride + Steam Oxide
Overall Length
3.1490 79.98MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.2200 5.59MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
32.00TPI
Thread Type
STI-I
Flute Direction
RIGHT
Thread Size
No.8
Thread Limit
3B
Tap Style
STI
Tap Type
Mod Bottom
Dimension Standard
DINSI
Tap Drill Range
0.1732 4.40MM
Tap Square
0.1650
Tap Chamfer
2.0P-3.0P
