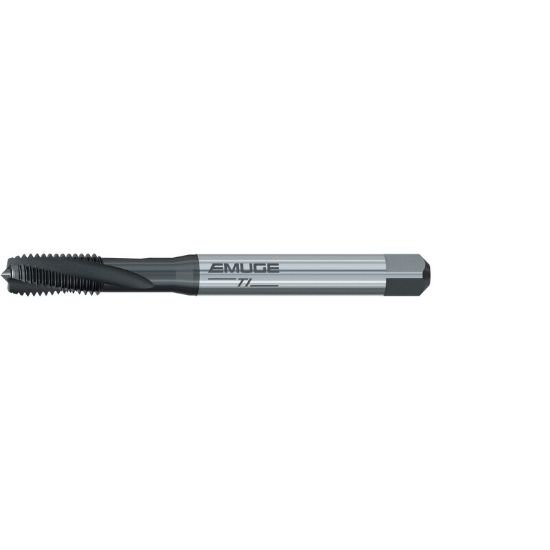

Emuge BU456011.5040 Tap Mod Bottom No.8-36.00TPI 3B NF/UNF/UNEF DINSI HSSE Nitride + Steam Oxide

Part Number: EMUBU456011.5040 ISO: BU456011.5040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159725
$47.68
EMUGE BU456011.5040 No.8x36.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 3B NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride + Steam Oxide
Overall Length 2.4800 62.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 36.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.8
Thread Limit 3B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.1350 3.43MM - 0.1421 3.61MM
Tap Square 0.1310
Tap Chamfer 2.0P-3.0P
