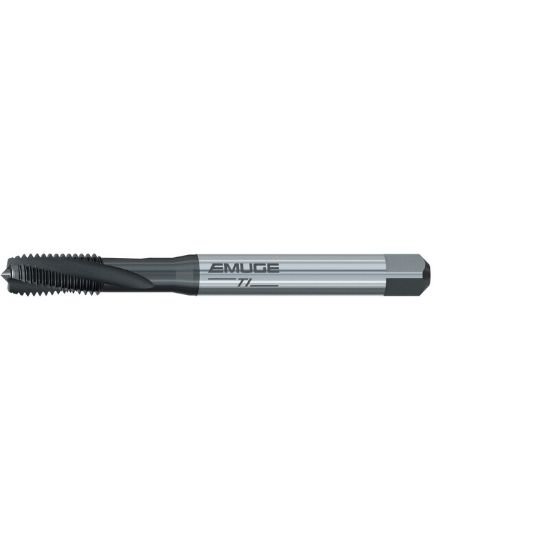

Picture of Emuge BU456011.5039 Tap Mod Bottom No.6-40 TPI 3B NF/UNF/UNEF DINSI HSSE Nitride + Steam Oxide

Emuge BU456011.5039 Tap Mod Bottom No.6-40 TPI 3B NF/UNF/UNEF DINSI HSSE Nitride + Steam Oxide

Part Number: EMUBU456011.5039 ISO: BU456011.5039
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$55.71
SKU: 1159724

Description

EMUGE BU456011.5039 No.6x40 TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 3B NF/UNF/UNEF
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.2050 56.01MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 40.00TPI
Thread Size No.6
Tap Drill Range 0.1118 2.84MM - 0.1181 3.00MM
Tap Square 0.1100
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard DINSI
