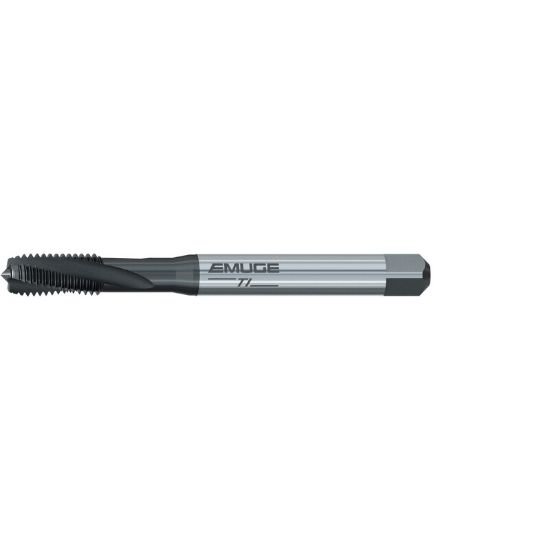

Picture of Emuge BU456011.5008 Tap Mod Bottom No.12-24 TPI 3B NC/UNC DINSI HSSE Nitride + Steam Oxide

Emuge BU456011.5008 Tap Mod Bottom No.12-24 TPI 3B NC/UNC DINSI HSSE Nitride + Steam Oxide

Part Number: EMUBU456011.5008 ISO: BU456011.5008
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$54.37
SKU: 1159714

Description

EMUGE BU456011.5008 No.12x24 TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 3B NC/UNC
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.1490 79.98MM
Shank/Pilot Dia 0.2200 5.59MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size No.12
Tap Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Square 0.1650
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard DINSI
