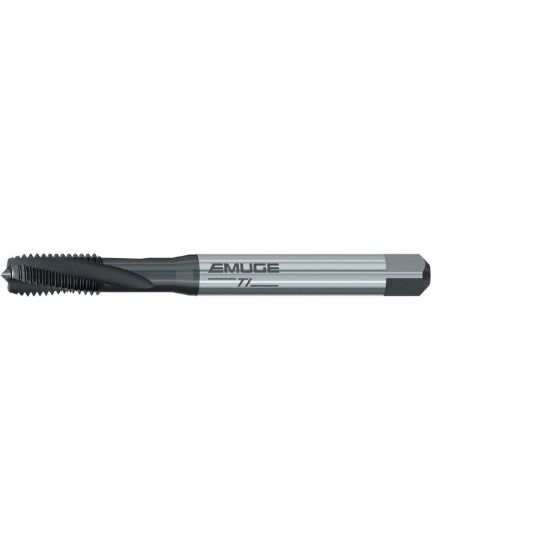

EMUGE BU456001.5040 Tap Mod Bottom No.8-36.00TPI 2B NF/UNF/UNEF DINSI HSSE Nitride + Steam Oxide

ISO: BU456001.5040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU456001.5040
Delivery date: 3-5 days
$46.84

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating Nitride + Steam Oxide
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Type NF/UNF/UNEF
Cut Rating High Temp, Inconel, Titanium
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Overall Len 2.4850 63.12MM
Thread Pitch 36.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size No.8
Thread Limit 2B
Drill Range 0.1350 3.43MM - 0.1421 3.61MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Dimension Standard DINSI
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
