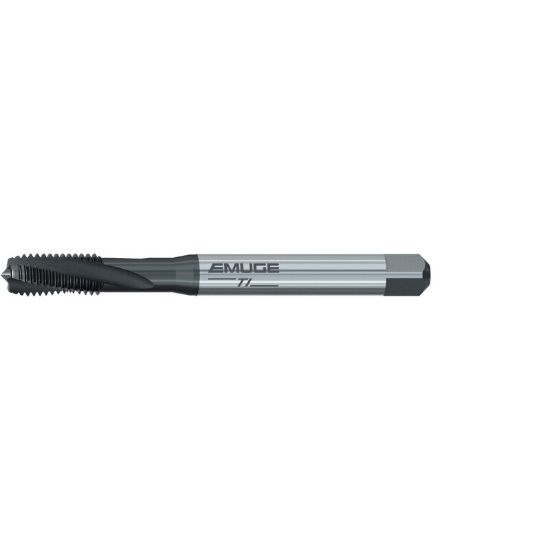

EMUGE BU456001.5009 Tap 1/4-20.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE Nitride + Steam Oxide

ISO: BU456001.5009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU456001.5009
Delivery date: 3-5 days
$50.05

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Nitride + Steam Oxide
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 2B
Shank/Pilot Dia 0.2550 6.48MM
Tool Material Steel
Thread Size 1/4"
Cut Rating High Temp, Inconel, Titanium
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Aerospace Yes
