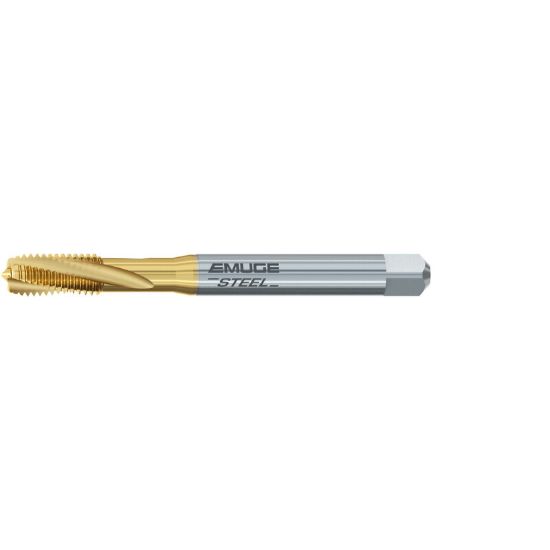

EMUGE BU451400.5043 Tap 1/4-28.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE TiN

ISO: BU451400.5043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU451400.5043
Delivery date: 3-5 days
$57.67

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Dimensional Specifications
Thread Pitch 28.00TPI
Flutes/Inserts 3
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 3.1490 79.98MM
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Standard
Thread Size 1/4"
Thread Limit 2B
Thread Type NF/UNF/UNEF
Shank/Pilot Dia 0.2550 6.48MM
Machine Side Connection Type Tap Collet
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
