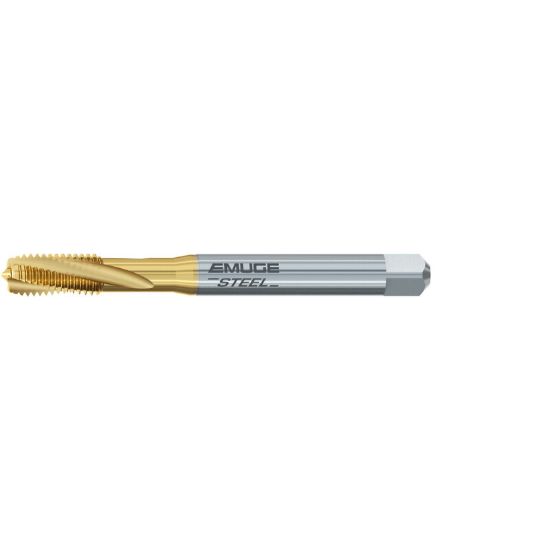

EMUGE BU451400.5036 Tap No.3-56.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE TiN

ISO: BU451400.5036

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU451400.5036
Delivery date: 3-5 days
$65.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Thread Size No.3
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.9700 50.04MM
Drill Range 0.0803 2.04MM - 0.0850 2.16MM
Thread Limit 2B
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Length Type Standard
Tool Material Steel
Tap Square 0.1100
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
