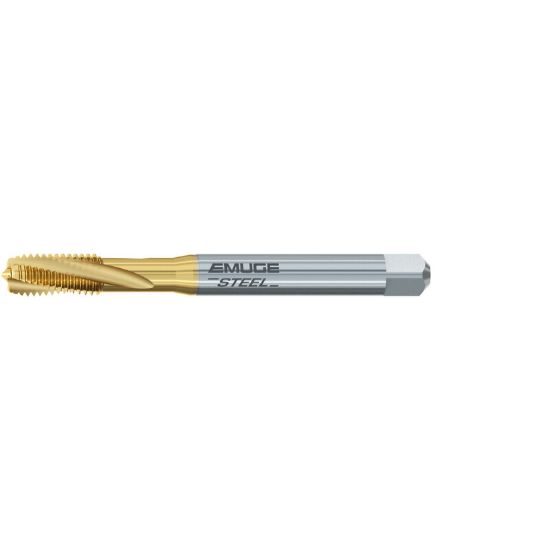

EMUGE BU451400.5033 Tap No.0-80.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE TiN

ISO: BU451400.5033

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU451400.5033
Delivery date: 3-5 days
$73.85

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Dimensional Specifications
Tool Material Steel
Tap Square 0.1100
Thread Size No.0
Overall Len 1.6250 41.28MM
Flutes/Inserts 3
Drill Range 0.0469 1.19MM - 0.0500 1.27MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type NF/UNF/UNEF
Thread Limit 2B
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 80.00TPI
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
