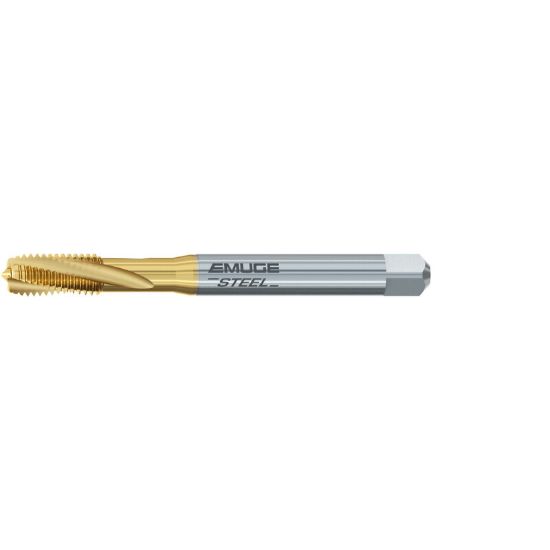

EMUGE BU451400.5006 Tap Mod Bottom No.8-32.00TPI 2B NC/UNC DINSI HSSE TiN

ISO: BU451400.5006

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU451400.5006
Delivery date: 3-5 days
$49.26

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 32.00TPI
Thread Limit 2B
Thread Type NC/UNC
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Standard
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Overall Len 2.4850 63.12MM
Flutes/Inserts 3
Thread Size No.8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
