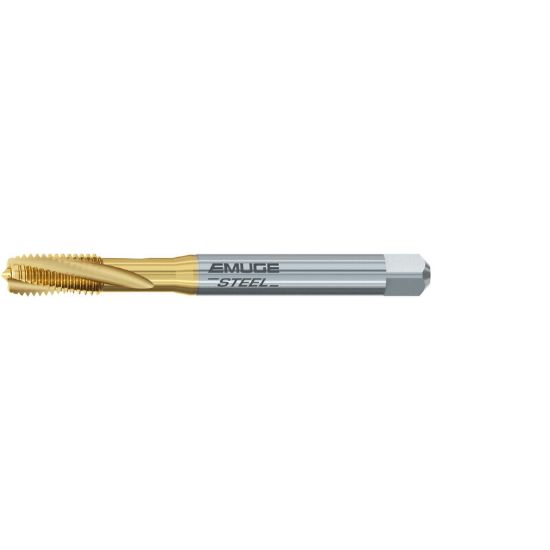

EMUGE BU451400.5005 Tap Mod Bottom No.6-32.00TPI 2B NC/UNC DINSI HSSE TiN

ISO: BU451400.5005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU451400.5005
Delivery date: 3-5 days
$44.82

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Massachusetts
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flutes/Inserts 3
Thread Pitch 32.00TPI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Thread Limit 2B
Overall Len 2.2050 56.01MM
Thread Size No.6
Tool Material Steel
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
