  • EMUGE BU451400.5000 Tap No.1-64.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

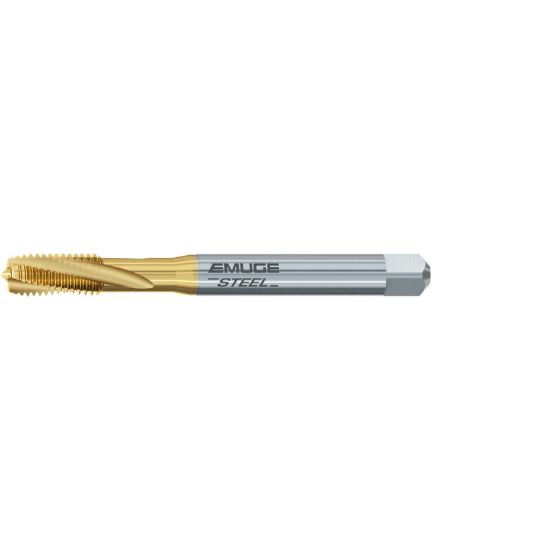

Picture of EMUGE BU451400.5000 Tap No.1-64.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

EMUGE BU451400.5000 Tap No.1-64.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

ISO: BU451400.5000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU451400.5000
Delivery date: 3-5 days
$68.37

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Limit 2B
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 64.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size No.1
Tool Material Steel
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Overall Len 1.7720 45.01MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Drill Range 0.0559 1.42MM - 0.0606 1.54MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
