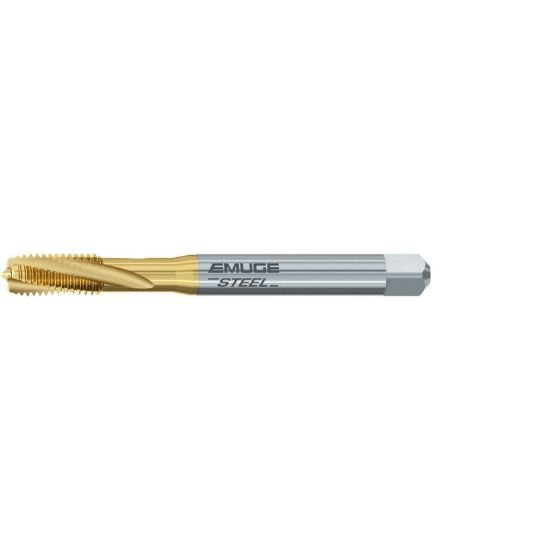

Picture of Emuge BU451400.5002 Tap No.3-48.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

Emuge BU451400.5002 Tap No.3-48.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

Part Number: EMUBU451400.5002 ISO: BU451400.5002

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158364
Vendor: Sussex Tool and Supply
$68.31
EMUGE BU451400.5002 No.3x48.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 1.9700 50.04MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 48.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.3
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.0772 1.96MM - 0.0827 2.10MM
Tap Square 0.1100
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
