  • EMUGE BU39Z700.5045 Tap 3/8-24.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

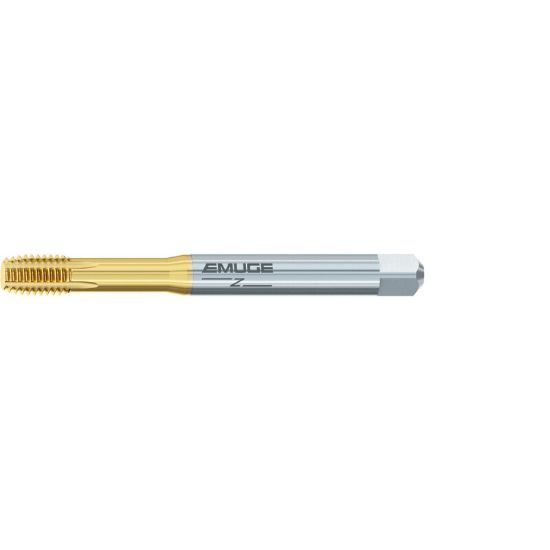

Picture of EMUGE BU39Z700.5045 Tap 3/8-24.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

EMUGE BU39Z700.5045 Tap 3/8-24.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

ISO: BU39Z700.5045

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU39Z700.5045
Delivery date: 3-5 days
$87.76

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size 3/8"
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tap Style Roll Form
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Thread Limit 2B
Flute Direction STRAIGHT
Drill Range 0.3535 8.98MM - 0.3591 9.12MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
