  • EMUGE BU39Z700.5044 Tap 5/16-24.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

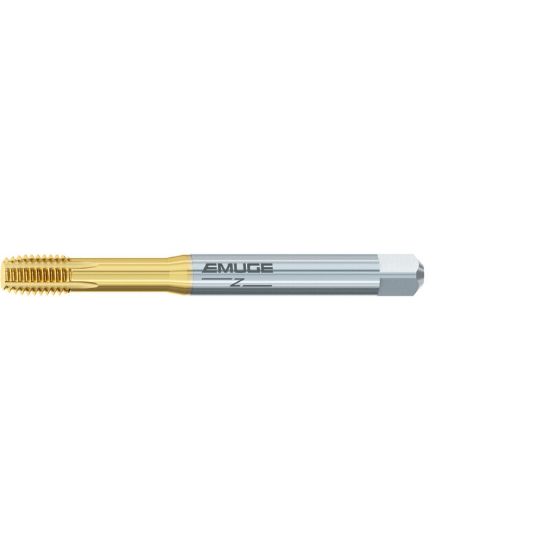

Picture of EMUGE BU39Z700.5044 Tap 5/16-24.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

EMUGE BU39Z700.5044 Tap 5/16-24.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

ISO: BU39Z700.5044

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU39Z700.5044
Delivery date: 3-5 days
$104.14

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tap Chamfer 1.5P-2.0P
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Thread Limit 2B
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Drill Range 0.2909 7.39MM - 0.2969 7.54MM
Tap Square 0.2380
Machine Side Connection Type Tap Collet
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
