  • EMUGE BU39Z700.5043 Tap 1/4-28.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE-Powder Metal TiN

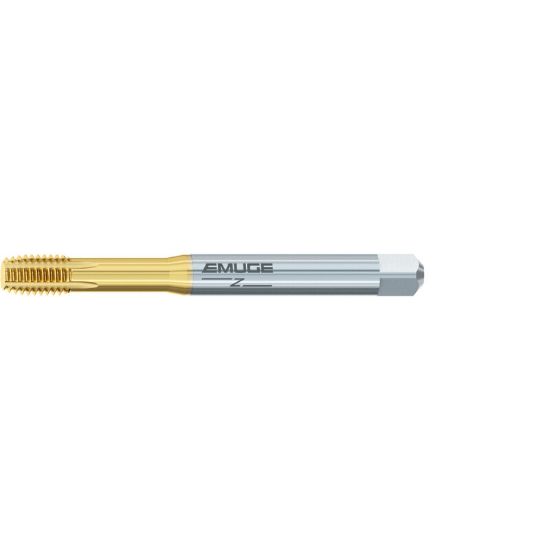

Picture of EMUGE BU39Z700.5043 Tap 1/4-28.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE-Powder Metal TiN

EMUGE BU39Z700.5043 Tap 1/4-28.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE-Powder Metal TiN

ISO: BU39Z700.5043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU39Z700.5043
Delivery date: 3-5 days
$69.37

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Size 1/4"
Thread Limit 2B
Thread Type NF/UNF/UNEF
Thread Pitch 28.00TPI
Machine Side Connection Type Tap Collet
Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 3.1490 79.98MM
Tap Style Roll Form
Tool Material Steel
Length Type Standard
Tap Type Bottoming
Flute Direction STRAIGHT
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
