  • EMUGE BU39Z700.5041 Tap Bottoming No.10-32.00TPI 2B NF/UNF/UNEF DINSI HSSE-Powder Metal TiN

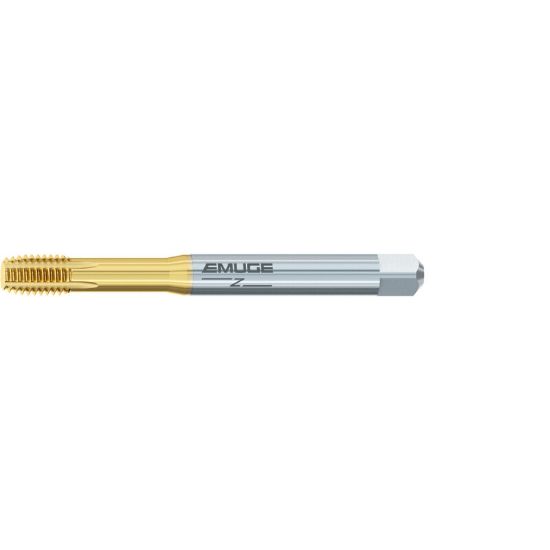

Picture of EMUGE BU39Z700.5041 Tap Bottoming No.10-32.00TPI 2B NF/UNF/UNEF DINSI HSSE-Powder Metal TiN

EMUGE BU39Z700.5041 Tap Bottoming No.10-32.00TPI 2B NF/UNF/UNEF DINSI HSSE-Powder Metal TiN

ISO: BU39Z700.5041

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU39Z700.5041
Delivery date: 3-5 days
$59.12

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Size No.10
Tap Chamfer 1.5P-2.0P
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Roll Form
Length Type Standard
Tap Type Bottoming
Thread Limit 2B
Flute Direction STRAIGHT
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
