  • EMUGE BU39Z700.5010 Tap 5/16-18.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

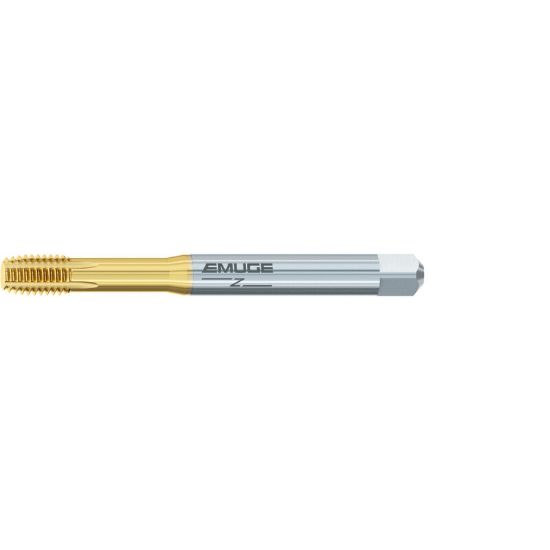

Picture of EMUGE BU39Z700.5010 Tap 5/16-18.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

EMUGE BU39Z700.5010 Tap 5/16-18.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

ISO: BU39Z700.5010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU39Z700.5010
Delivery date: 3-5 days
$78.09

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Flute Direction STRAIGHT
Drill Range 0.2839 7.21MM - 0.2913 7.40MM
Tap Square 0.2380
Thread Limit 2B
Machine Side Connection Type Tap Collet
Thread Pitch 18.00TPI
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
