  • EMUGE BU39Z700.5007 Tap Bottoming No.10-24.00TPI 2B NC/UNC DINSI HSSE-Powder Metal TiN

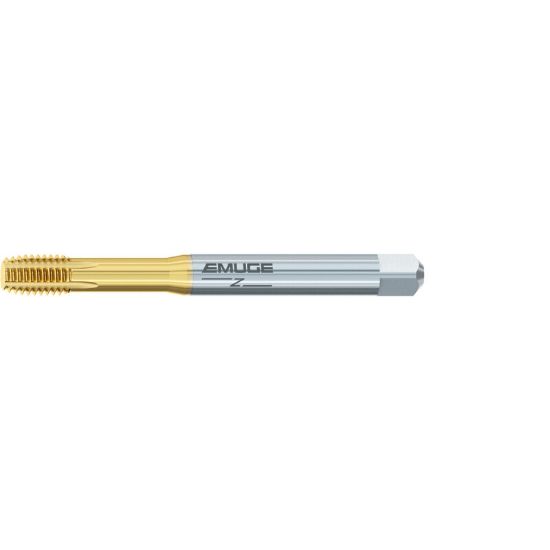

Picture of EMUGE BU39Z700.5007 Tap Bottoming No.10-24.00TPI 2B NC/UNC DINSI HSSE-Powder Metal TiN

EMUGE BU39Z700.5007 Tap Bottoming No.10-24.00TPI 2B NC/UNC DINSI HSSE-Powder Metal TiN

ISO: BU39Z700.5007

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU39Z700.5007
Delivery date: 3-5 days
$59.12

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Coating TiN
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Style Roll Form
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Machine Side Connection Type Tap Collet
Thread Limit 2B
Flute Direction STRAIGHT
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Thread Pitch 24.00TPI
Thread Size No.10
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
