  • EMUGE BU39Z700.5004 Tap No.5-40.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

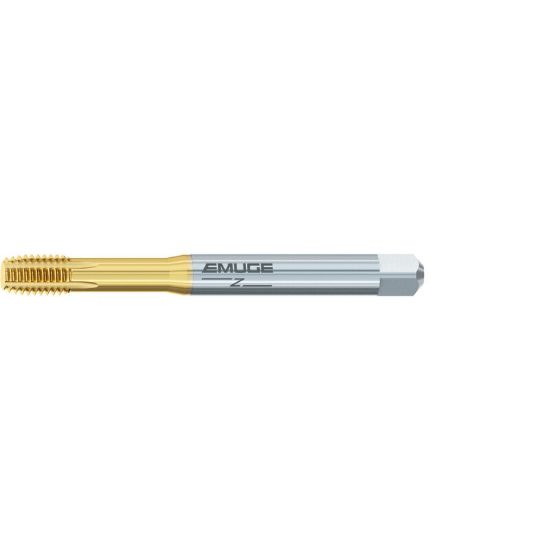

Picture of EMUGE BU39Z700.5004 Tap No.5-40.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

EMUGE BU39Z700.5004 Tap No.5-40.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

ISO: BU39Z700.5004

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU39Z700.5004
Delivery date: 3-5 days
$67.84

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Flute Direction STRAIGHT
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 40.00TPI
Thread Limit 2B
Overall Len 2.2050 56.01MM
Thread Size No.5
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Drill Range 0.1122 2.85MM - 0.1154 2.93MM
Tap Square 0.1100
Tap Style Roll Form
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
