  • EMUGE BU39Z700.5003 Tap Bottoming No.4-40.00TPI 2B NC/UNC DINSI HSSE-Powder Metal TiN

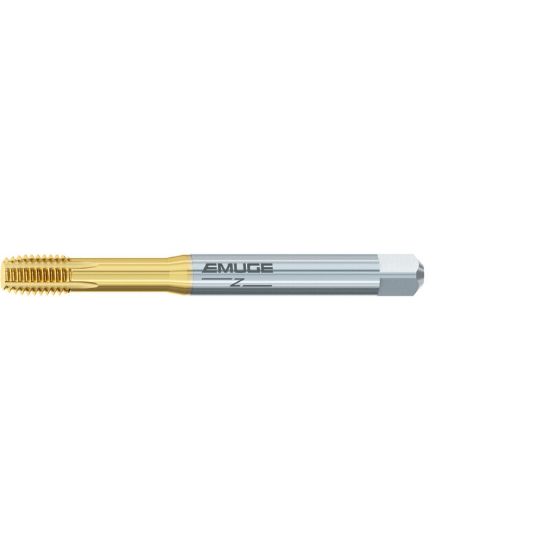

Picture of EMUGE BU39Z700.5003 Tap Bottoming No.4-40.00TPI 2B NC/UNC DINSI HSSE-Powder Metal TiN

EMUGE BU39Z700.5003 Tap Bottoming No.4-40.00TPI 2B NC/UNC DINSI HSSE-Powder Metal TiN

ISO: BU39Z700.5003

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU39Z700.5003
Delivery date: 3-5 days
$65.96

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Shipping State Massachusetts
Coating TiN
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Tap Chamfer 1.5P-2.0P
Thread Size No.4
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 40.00TPI
Thread Limit 2B
Overall Len 2.2050 56.01MM
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
