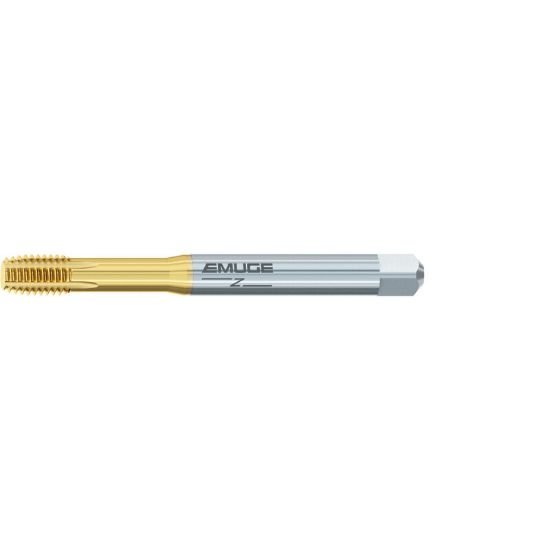

Picture of Emuge BU39Z700.5005 Tap Bottoming No.6-32.00TPI 2B NC/UNC DINSI HSSE-Powder Metal TiN

Emuge BU39Z700.5005 Tap Bottoming No.6-32.00TPI 2B NC/UNC DINSI HSSE-Powder Metal TiN

Part Number: EMUBU39Z700.5005 ISO: BU39Z700.5005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156906
Vendor: Sussex Tool and Supply
$61.76
EMUGE BU39Z700.5005 No.6x32.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 2.2050 56.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size No.6
Thread Limit 2B
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Tap Square 0.1100
Tap Chamfer 1.5P-2.0P
