  • EMUGE BU396A00.5009 Tap 1/4-20.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

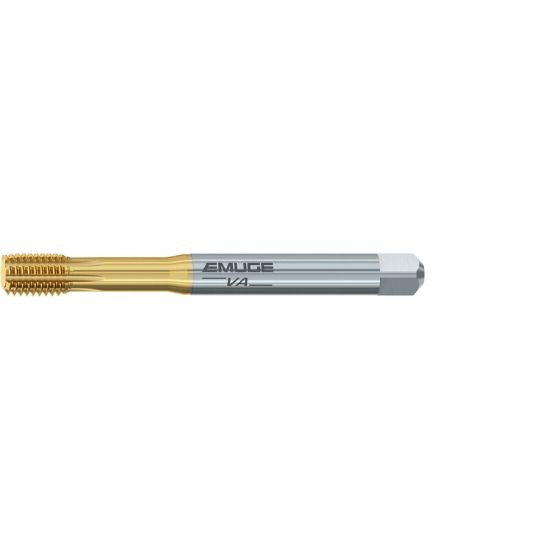

Picture of EMUGE BU396A00.5009 Tap 1/4-20.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

EMUGE BU396A00.5009 Tap 1/4-20.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

ISO: BU396A00.5009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU396A00.5009
Delivery date: 3-5 days
$70.96

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Type NC/UNC
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Length Type Standard
Tap Style Roll Form
Thread Size 1/4"
Thread Limit 2B
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Tap Type Bottoming
Flutes/Inserts 3
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
