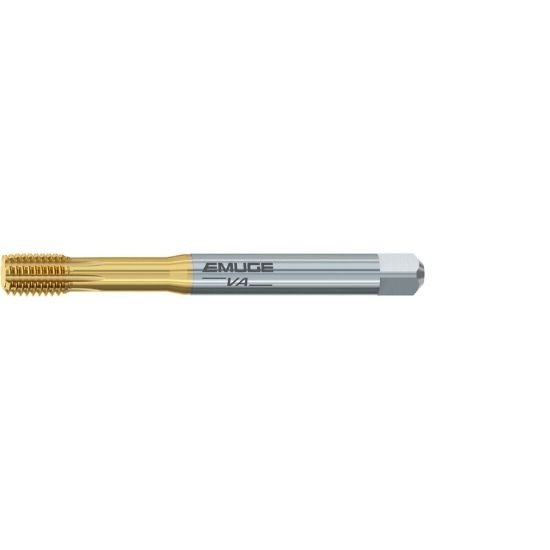

Picture of Emuge BU396A00.5011 Tap 3/8-16.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

Emuge BU396A00.5011 Tap 3/8-16.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

Part Number: EMUBU396A00.5011 ISO: BU396A00.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157000
Vendor: Sussex Tool and Supply
$91.52
EMUGE BU396A00.5011 3/8"x16.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, High Temp
Coating TIN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 3/8"
Thread Limit 2B
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
