  • EMUGE BU377F00.5045 Tap 3/8-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

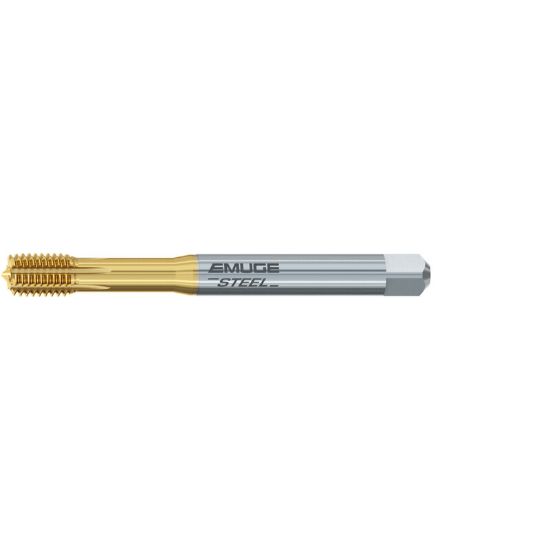

Picture of EMUGE BU377F00.5045 Tap 3/8-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE BU377F00.5045 Tap 3/8-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

ISO: BU377F00.5045

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU377F00.5045
Delivery date: 3-5 days
$100.82

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Coating TiN
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Size 3/8"
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tap Style Roll Form
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 24.00TPI
Thread Limit 2B
Flute Direction STRAIGHT
Thread Type NF/UNF/UNEF
Drill Range 0.3535 8.98MM - 0.3591 9.12MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Energy Yes
Job Shop Yes
