  • EMUGE BU377F00.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

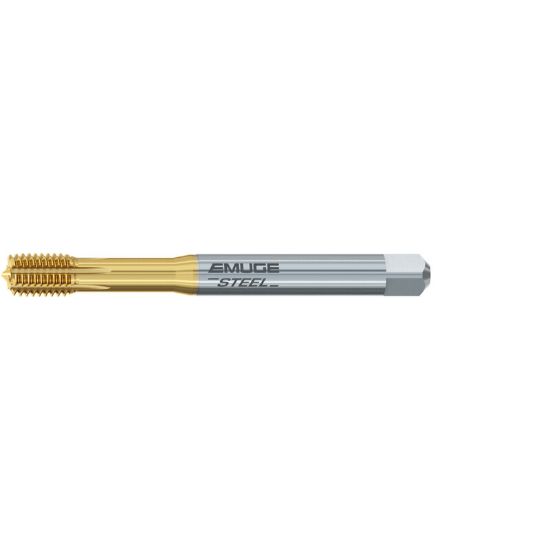

Picture of EMUGE BU377F00.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE BU377F00.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

ISO: BU377F00.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU377F00.5011
Delivery date: 3-5 days
$100.82

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tool Material Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Size 3/8"
Thread Type NC/UNC
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Tap Style Roll Form
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
Thread Pitch 16.00TPI
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 2B
Flute Direction STRAIGHT
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Energy Yes
Job Shop Yes
