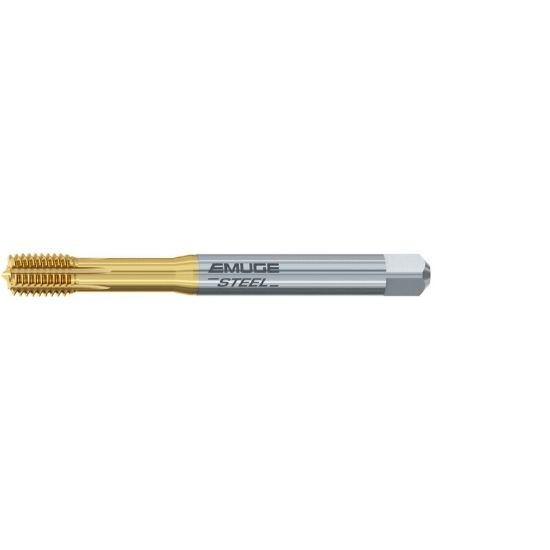

Picture of Emuge BU377F00.5044 Tap 5/16-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Emuge BU377F00.5044 Tap 5/16-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Part Number: EMUBU377F00.5044 ISO: BU377F00.5044

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157045
Vendor: Sussex Tool and Supply
$91.36
EMUGE BU377F00.5044 5/16"x24.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 3.5430 89.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size 5/16"
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.2909 7.39MM - 0.2969 7.54MM
Tap Square 0.2380
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
