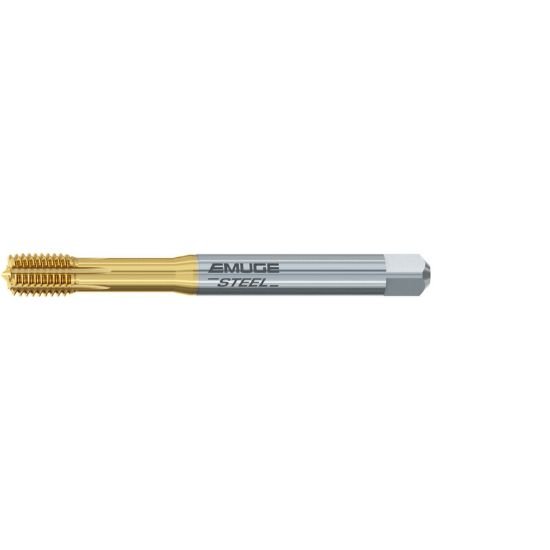

Picture of Emuge BU377F00.5043 Tap 1/4-28.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Emuge BU377F00.5043 Tap 1/4-28.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Part Number: EMUBU377F00.5043 ISO: BU377F00.5043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157044
Vendor: Sussex Tool and Supply
$81.16
EMUGE BU377F00.5043 1/4"x28.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 3.1490 79.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 28.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size 1/4"
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
