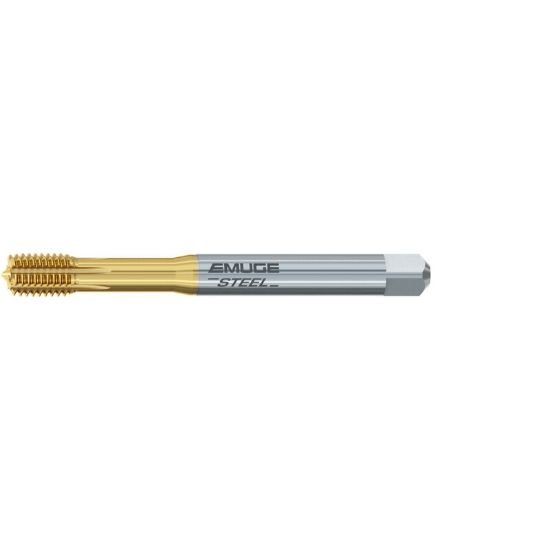

Picture of Emuge BU377F00.5041 Tap No.10-32.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Emuge BU377F00.5041 Tap No.10-32.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Part Number: EMUBU377F00.5041 ISO: BU377F00.5041
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$79.92
SKU: 1157043

Description

EMUGE BU377F00.5041 No.10x32.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 32.00TPI
Thread Size No.10
Tap Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tap Square 0.1520
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DINSI
