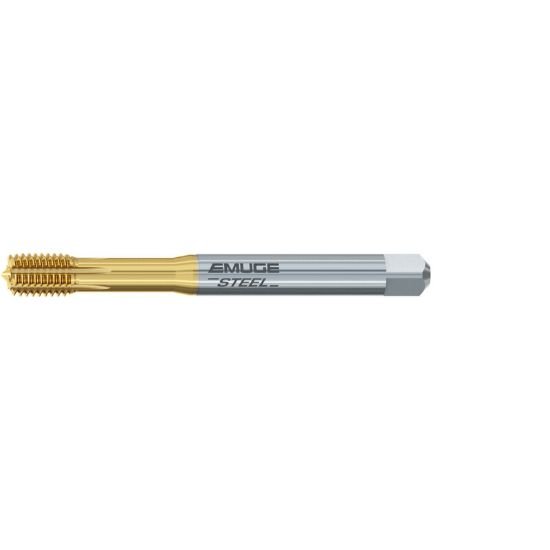

Picture of Emuge BU377F00.5007 Tap No.10-24.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Emuge BU377F00.5007 Tap No.10-24.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Part Number: EMUBU377F00.5007 ISO: BU377F00.5007
Looking for alternatives…
Find a drill for this tap No.10 × 24.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157038
Vendor: Sussex Tool and Supply
$79.92

Description

EMUGE BU377F00.5007 No.10x24.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 24.00TPI
Thread Size No.10
Tap Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Square 0.1520
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DINSI
