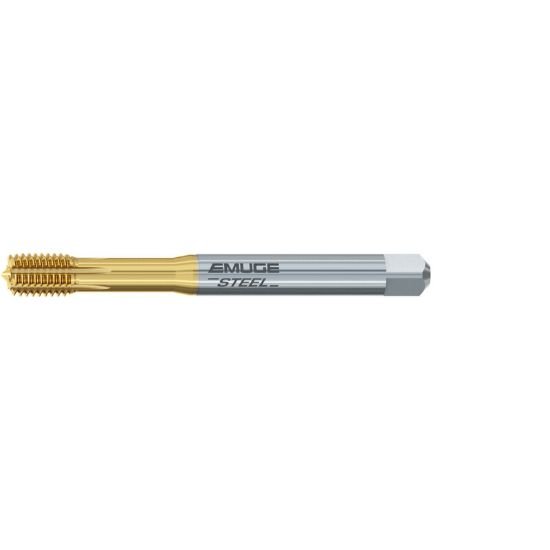

Picture of Emuge BU377F00.5006 Tap No.8-32.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Emuge BU377F00.5006 Tap No.8-32.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Part Number: EMUBU377F00.5006 ISO: BU377F00.5006

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157037
Vendor: Sussex Tool and Supply
$69.17
EMUGE BU377F00.5006 No.8x32.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 2.4850 63.12MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size No.8
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
