  • EMUGE BU35J411.5006 Tap No.8-32.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

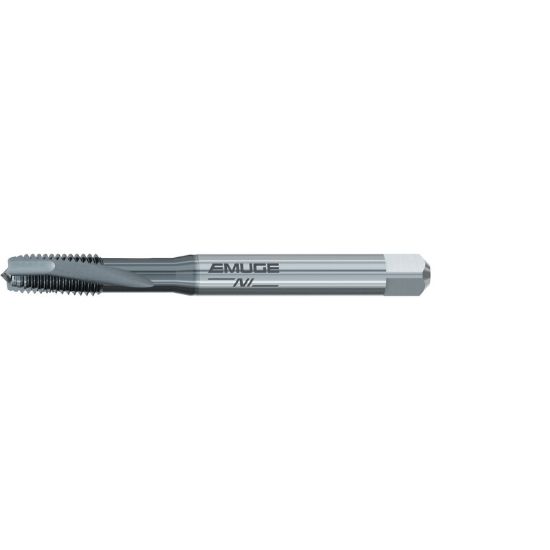

Picture of EMUGE BU35J411.5006 Tap No.8-32.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

EMUGE BU35J411.5006 Tap No.8-32.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

ISO: BU35J411.5006

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU35J411.5006
Delivery date: 3-5 days
$65.82

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Standard
Tool Material Steel
Overall Len 2.4850 63.12MM
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Type Mod Bottom
Thread Size No.8
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
