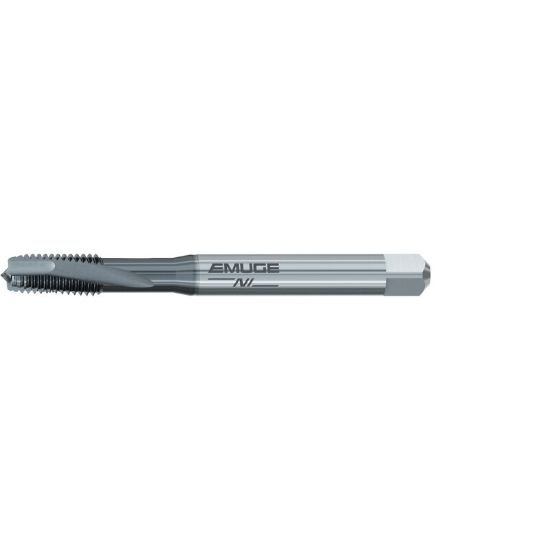

Picture of Emuge BU35J411.5637 Tap No.10-32.00TPI Mod Bottom STI-I DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

Emuge BU35J411.5637 Tap No.10-32.00TPI Mod Bottom STI-I DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

Part Number: EMUBU35J411.5637 ISO: BU35J411.5637

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159294
Vendor: Sussex Tool and Supply
$79.70
EMUGE BU35J411.5637 No.10x32.00TPI STI Mod Bottom 2.0P-3.0P HSSE-PM TiCN 3B STI-I Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating TICN
Overall Length 3.1490 79.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type STI-I
Flute Direction RIGHT
Thread Size No.10
Thread Limit 3B
Tap Style STI
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.2008 5.10MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
