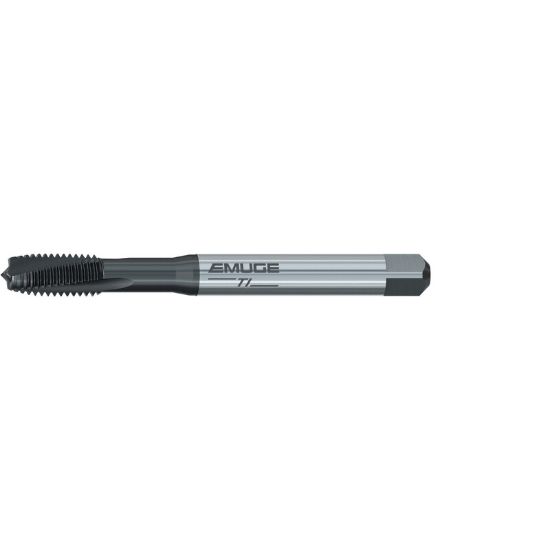

EMUGE BU306011.5002 Tap No.3-48.00TPI Plug NC/UNC DINSI 4P-5P Cobalt HSSE Nitride + Steam Oxide

ISO: BU306011.5002

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU306011.5002
Delivery date: 3-5 days
$62.65

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Thread Size No.3
Thread Limit 3B
Flute Direction L - Left
Cut Rating High Temp, Inconel, Titanium
Overall Len 1.9700 50.04MM
Tap Type Plug
Tap Square 0.1100
Length Type Standard
Tool Material Steel
Tap Chamfer 4P-5P
Thread Type NC/UNC
Dimension Standard DINSI
Flutes/Inserts 2
Thread Pitch 48.00TPI
Machine Side Connection Type Tap Collet
Drill Range 0.0772 1.96MM - 0.0827 2.10MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
